ARM Trusted Firmware - Firmware Update Design Guide

Contents :

  1. Introduction
  2. FWU Overview
  3. Image Identification
  4. FWU State Machine
  5. BL1 SMC Interface
  1. Introduction

This document describes the design of the Firmware Update (FWU) feature, which enables authenticated firmware to update firmware images from external interfaces such as USB, UART, SD-eMMC, NAND, NOR or Ethernet to SoC Non-Volatile memories such as NAND Flash, LPPDR2-NVM or any memory determined by the platform. This feature functions even when the current firmware in the system is corrupt or missing; it therefore may be used as a recovery mode. It may also be complemented by other, higher level firmware update software.

FWU implements a specific part of the Trusted Board Boot Requirements (TBBR) specification, ARM DEN0006C-1. It should be used in conjunction with the Trusted Board Boot design document, which describes the image authentication parts of the Trusted Firmware (TF) TBBR implementation.

Scope

This document describes the secure world FWU design. It is beyond its scope to describe how normal world FWU images should operate. To implement normal world FWU images, please refer to the "Non-Trusted Firmware Updater" requirements in the TBBR.

  1. FWU Overview

The FWU boot flow is primarily mediated by BL1. Since BL1 executes in ROM, and it is usually desirable to minimize the amount of ROM code, the design allows some parts of FWU to be implemented in other secure and normal world images. Platform code may choose which parts are implemented in which images but the general expectation is:

  • BL1 handles:
    • Detection and initiation of the FWU boot flow.
    • Copying images from non-secure to secure memory
    • FWU image authentication
    • Context switching between the normal and secure world during the FWU process.
  • Other secure world FWU images handle platform initialization required by the FWU process.
  • Normal world FWU images handle loading of firmware images from external interfaces to non-secure memory.

The primary requirements of the FWU feature are:

  1. Export a BL1 SMC interface to interoperate with other FWU images executing at other Exception Levels.
  2. Export a platform interface to provide FWU common code with the information it needs, and to enable platform specific FWU functionality. See the Porting Guide for details of this interface.

TF uses abbreviated image terminology for FWU images like for other TF images. An overview of this terminology can be found here.

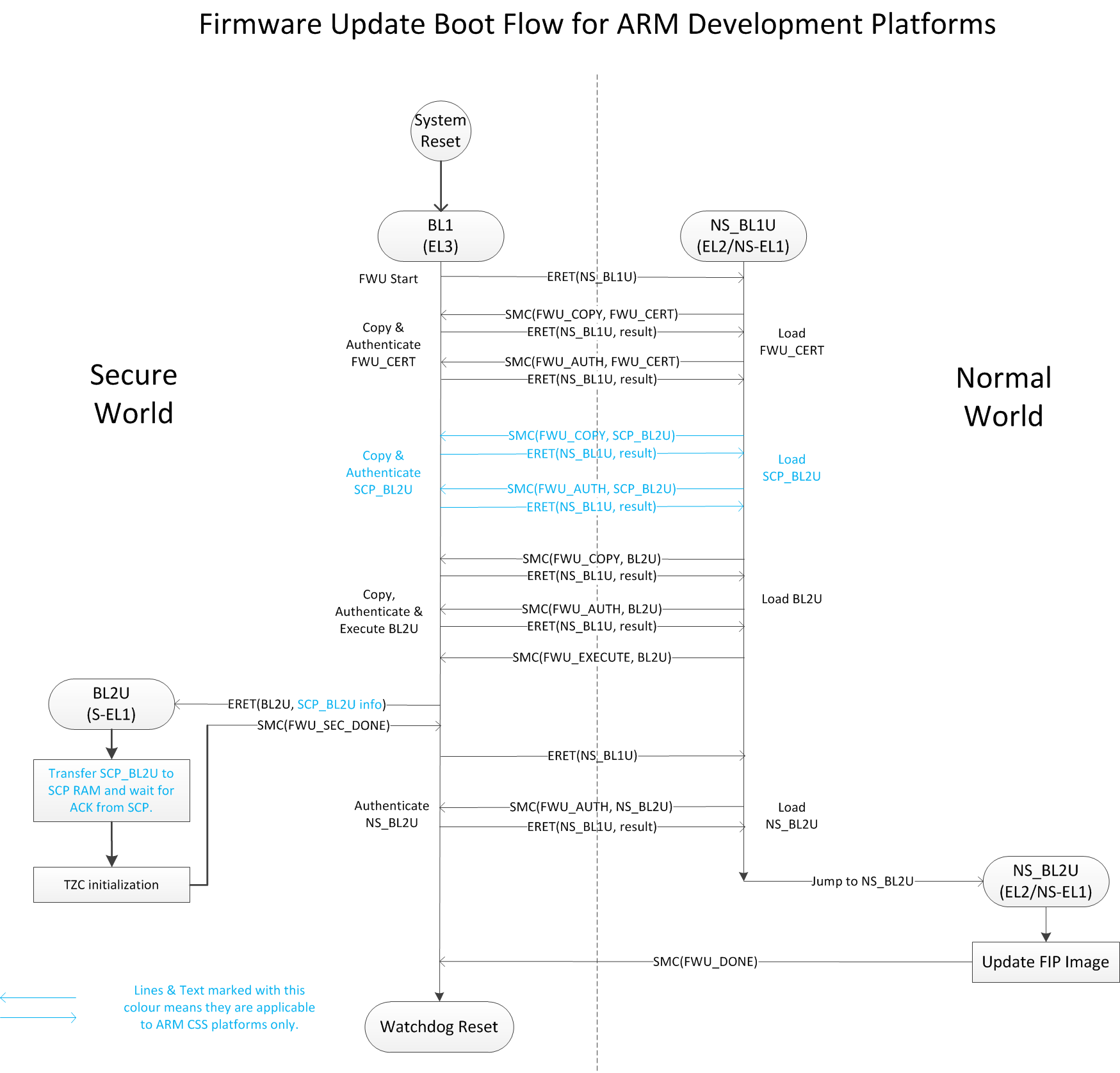

The following diagram shows the FWU boot flow for ARM development platforms. ARM CSS platforms like Juno have a System Control Processor (SCP), and these use all defined FWU images. Other platforms may use a subset of these.

Flow Diagram

  1. Image Identification

Each FWU image and certificate is identified by a unique ID, defined by the platform, which BL1 uses to fetch an image descriptor (image_desc_t) via a call to bl1_plat_get_image_desc(). The same ID is also used to prepare the Chain of Trust (Refer to the Authentication Framework Design for more information).

The image descriptor includes the following information:

  • Executable or non-executable image. This indicates whether the normal world is permitted to request execution of a secure world FWU image (after authentication). Secure world certificates and non-AP images are examples of non-executable images.
  • Secure or non-secure image. This indicates whether the image is authenticated/executed in secure or non-secure memory.
  • Image base address and size.
  • Image entry point configuration (an entry_point_info_t).
  • FWU image state.

BL1 uses the FWU image descriptors to:

  • Validate the arguments of FWU SMCs
  • Manage the state of the FWU process
  • Initialize the execution state of the next FWU image.
  1. FWU State Machine

BL1 maintains state for each FWU image during FWU execution. FWU images at lower Exception Levels raise SMCs to invoke FWU functionality in BL1, which causes BL1 to update its FWU image state. The BL1 image states and valid state transitions are shown in the diagram below. Note that secure images have a more complex state machine than non-secure images.

FWU state machine

The following is a brief description of the supported states:

  • RESET: This is the initial state of every image at the start of FWU. Authentication failure also leads to this state. A secure image may yield to this state if it has completed execution.

  • COPYING: This is the state of a secure image while BL1 is copying it in blocks from non-secure to secure memory.

  • COPIED: This is the state of a secure image when BL1 has completed copying it to secure memory.

  • AUTHENTICATED: This is the state of an image when BL1 has successfully authenticated it.

  • EXECUTED: This is the state of a secure, executable image when BL1 has passed execution control to it.

  • INTERRUPTED: This is the state of a secure, executable image after it has requested BL1 to resume normal world execution.

  1. BL1 SMC Interface

BL1_SMC_CALL_COUNT

Arguments:
    uint32_t function ID : 0x0

Return:
    uint32_t

This SMC returns the number of SMCs supported by BL1.

BL1_SMC_UID

Arguments:
    uint32_t function ID : 0x1

Return:
    UUID : 32 bits in each of w0-w3 (or r0-r3 for AArch32 callers)

This SMC returns the 128-bit Universally Unique Identifier for the BL1 SMC service.

BL1_SMC_VERSION

Argument:
    uint32_t function ID : 0x3

Return:
    uint32_t : Bits [31:16] Major Version
               Bits [15:0] Minor Version

This SMC returns the current version of the BL1 SMC service.

BL1_SMC_RUN_IMAGE

Arguments:
    uint32_t           function ID : 0x4
    entry_point_info_t *ep_info

Return:
    void

Pre-conditions:
    if (normal world caller) synchronous exception
    if (ep_info not EL3) synchronous exception

This SMC passes execution control to an EL3 image described by the provided entry_point_info_t structure. In the normal TF boot flow, BL2 invokes this SMC for BL1 to pass execution control to BL31.

FWU_SMC_IMAGE_COPY

Arguments:
    uint32_t     function ID : 0x10
    unsigned int image_id
    uintptr_t    image_addr
    unsigned int block_size
    unsigned int image_size

Return:
    int : 0 (Success)
        : -ENOMEM
        : -EPERM

Pre-conditions:
    if (image_id is invalid) return -EPERM
    if (image_id is non-secure image) return -EPERM
    if (image_id state is not (RESET or COPYING)) return -EPERM
    if (secure world caller) return -EPERM
    if (source block is in secure memory) return -ENOMEM
    if (source block is not mapped into BL1) return -ENOMEM
    if (image_size > free secure memory) return -ENOMEM

This SMC copies the secure image indicated by image_id into secure memory. The image may be copied in a single block or multiple blocks. In either case, the total size of the image must be provided in image_size when invoking this SMC the first time for each image. The image_addr and block_size specify the source memory block to copy from. If block_size >= the size of the remaining image to copy, then BL1 completes the copy operation and sets the image state to COPIED. If there is still more to copy, BL1 sets the image state to COPYING. When using multiple blocks, the source blocks do not necessarily need to be in contiguous memory.

BL1 returns from exception to the normal world caller.

FWU_SMC_IMAGE_AUTH

Arguments:
    uint32_t     function ID : 0x11
    unsigned int image_id
    uintptr_t    image_addr
    unsigned int image_size

Return:
    int : 0 (Success)
        : -ENOMEM
        : -EPERM
        : -EAUTH

Pre-conditions:
    if (image_id is invalid) return -EPERM
    if (secure world caller)
        if (image_id state is not RESET) return -EPERM
        if (image_addr/image_size is not mappped into BL1) return -ENOMEM
    else // normal world caller
        if (image_id is secure image)
            if (image_id state is not COPIED) return -EPERM
        else // image_id is non-secure image
            if (image_id state is not RESET) return -EPERM
            if (image_addr/image_size is in secure memory) return -ENOMEM
            if (image_addr/image_size not mappped into BL1) return -ENOMEM

This SMC authenticates the image specified by image_id. If the image is in the RESET state, BL1 authenticates the image in place using the provided image_addr and image_size. If the image is a secure image in the COPIED state, BL1 authenticates the image from the secure memory that BL1 previously copied the image into.

BL1 returns from exception to the caller. If authentication succeeds then BL1 sets the image state to AUTHENTICATED. If authentication fails then BL1 returns the -EAUTH error and sets the image state back to RESET.

FWU_SMC_IMAGE_EXECUTE

Arguments:
    uint32_t     function ID : 0x12
    unsigned int image_id

Return:
    int : 0 (Success)
        : -EPERM

Pre-conditions:
    if (image_id is invalid) return -EPERM
    if (secure world caller) return -EPERM
    if (image_id is non-secure image) return -EPERM
    if (image_id is non-executable image) return -EPERM
    if (image_id state is not AUTHENTICATED) return -EPERM

This SMC initiates execution of a previously authenticated image specified by image_id, in the other security world to the caller. The current implementation only supports normal world callers initiating execution of a secure world image.

BL1 saves the normal world caller's context, sets the secure image state to EXECUTED, and returns from exception to the secure image.

FWU_SMC_IMAGE_RESUME

Arguments:
    uint32_t   function ID : 0x13
    register_t image_param

Return:
    register_t : image_param (Success)
               : -EPERM

Pre-conditions:
    if (normal world caller and no INTERRUPTED secure image) return -EPERM

This SMC resumes execution in the other security world while there is a secure image in the EXECUTED/INTERRUPTED state.

For normal world callers, BL1 sets the previously interrupted secure image state to EXECUTED. For secure world callers, BL1 sets the previously executing secure image state to INTERRUPTED. In either case, BL1 saves the calling world's context, restores the resuming world's context and returns from exception into the resuming world. If the call is successful then the caller provided image_param is returned to the resumed world, otherwise an error code is returned to the caller.

FWU_SMC_SEC_IMAGE_DONE

Arguments:
    uint32_t function ID : 0x14

Return:
    int : 0 (Success)
        : -EPERM

Pre-conditions:
    if (normal world caller) return -EPERM

This SMC indicates completion of a previously executing secure image.

BL1 sets the previously executing secure image state to the RESET state, restores the normal world context and returns from exception into the normal world.

FWU_SMC_UPDATE_DONE

Arguments:
    uint32_t   function ID : 0x15
    register_t client_cookie

Return:
    N/A

This SMC completes the firmware update process. BL1 calls the platform specific function bl1_plat_fwu_done, passing the optional argument client_cookie as a void *. The SMC does not return.

Copyright (c) 2015, ARM Limited and Contributors. All rights reserved.
