Merge "doc: secure partition manager design" into integration

docs/components/index.rst

@@ -17,7 +17,8 @@ Components
    ras
    romlib-design
    sdei
-   secure-partition-manager-design
+   secure-partition-manager
+   secure-partition-manager-mm
    psa-ffa-manifest-binding
    xlat-tables-lib-v2-design
    cot-binding

docs/components/secure-partition-manager-design.rst → docs/components/secure-partition-manager-mm.rst

-Secure Partition Manager
-************************
+Secure Partition Manager (MM)
+*****************************
+
+Foreword
+========
+

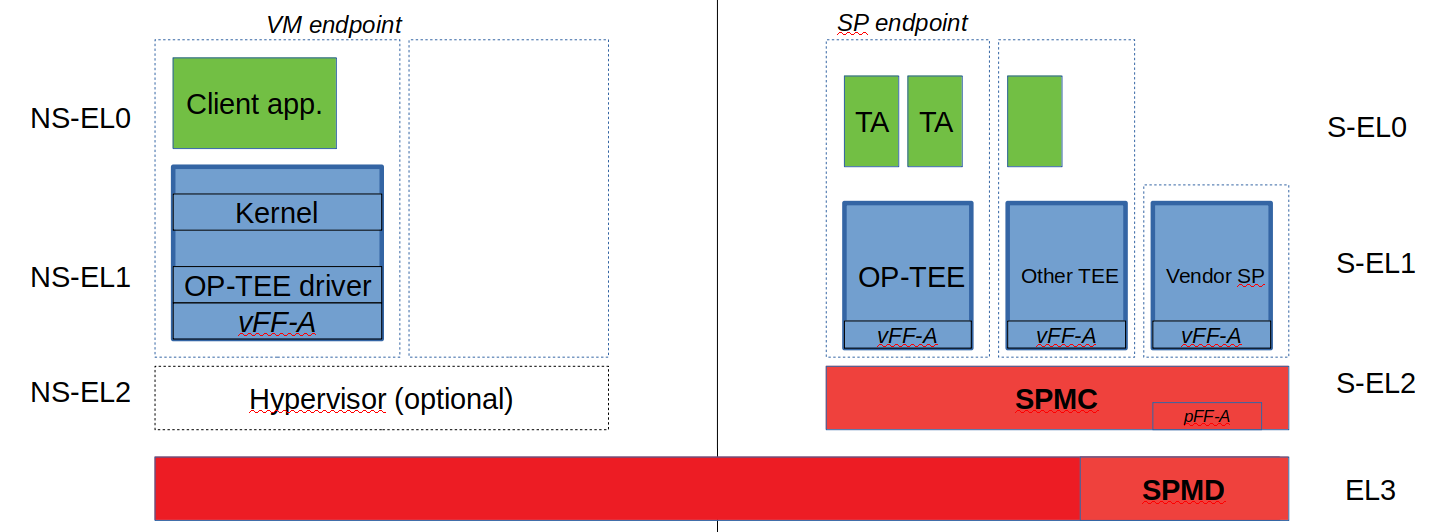

+Two implementations of a Secure Partition Manager co-exist in the TF-A codebase:
+
+-  SPM based on the PSA FF-A specification (`Secure Partition Manager`__).
+-  SPM based on the MM interface.
+
+.. __: secure-partition-manager.html
+
+Both implementations differ in their architectures and only one can be selected
+at build time.
+
+This document describes the latter implementation where the Secure Partition Manager
+resides at EL3 and management services run from isolated Secure Partitions at S-EL0.
+The communication protocol is established through the Management Mode (MM) interface.

 Background
 ==========

docs/resources/diagrams/plantuml/bl2-loading-sp.puml

+/'
+ ' Copyright (c) 2020, ARM Limited and Contributors. All rights reserved.
+ '
+ ' SPDX-License-Identifier: BSD-3-Clause
+ '/
+
+@startuml
+participant bl1
+participant FIP
+
+bl1 -> FIP : read(FW_CONFIG)
+create FW_CONFIG
+bl1 -> FW_CONFIG : load
+
+bl1 -> FIP : read(bl2)
+create bl2
+bl1 -> bl2 : load
+bl1 --> bl2 : hand off (FW_CONFIG)
+
+bl2 -> FW_CONFIG : read_node(SPKs)
+loop for each spkg subnode
+  bl2 -> FW_CONFIG : read(UUID)
+  bl2 -> FW_CONFIG : read(load_address)
+  bl2 -> FIP : read(spkg@UUID)
+  create SPKG
+  bl2 -> SPKG : load
+end loop
+
+bl2 -> FW_CONFIG : read_node(TOS_FW_CONFIG)
+create TOS_FW_CONFIG
+bl2 -> TOS_FW_CONFIG : load
+
+bl2 -> FIP : read(bl32/SPMC)
+create SPMC
+bl2 -> SPMC : load
+
+bl2 -> FIP : read(bl31)
+create bl31
+bl2 -> bl31 : load
+bl2 --> bl31 : hand off (TOS_FW_CONFIG)
+
+bl31 --> SPMC : hand off (TOS_FW_CONFIG)
+
+@enduml

docs/resources/diagrams/plantuml/fip-secure-partitions.puml

+/'
+ ' Copyright (c) 2020, ARM Limited and Contributors. All rights reserved.
+ '
+ ' SPDX-License-Identifier: BSD-3-Clause
+ '/
+
+@startuml
+
+folder SP_vendor_1 {
+ artifact sp_binary_1
+ artifact sp_manifest_1 [
+ sp_manifest_1
+ ===
+ UUID = xxx
+ load_address = 0xaaa
+ ...
+ ]
+}
+
+folder SP_vendor_2 {
+ artifact sp_binary_2
+ artifact sp_manifest_2 [
+ sp_manifest_2
+ ===
+ UUID = yyy
+ load_address = 0xbbb
+ ]
+}
+
+artifact config.json [
+ SP_LAYOUT.json
+ ===
+ path to sp_binary_1
+ path to sp_manifest_1
+ ---
+ path to sp_binary_2
+ path to sp_manifest_2
+ ---
+ ...
+]
+
+control sp_mk_generator
+
+artifact fconf_node [
+ fconf_sp.dts
+ ===
+ spkg_1 UUID
+ spkg_1 load_address
+ ---
+ spkg_2 UUID
+ spkg_2 load_address
+]
+
+artifact sp_gen [
+ sp_gen.mk
+ ===
+ FDT_SOURCE = ...
+ SPTOOL_ARGS = ...
+ FIP_ARG = ...
+]
+
+control dtc
+control sptool
+
+artifact FW_CONFIG
+
+artifact spkg_1 [
+ spkg_1.bin
+ ===
+ <i>header</i>
+ ---
+ manifest
+ ---
+ binary
+]
+
+artifact spkg_2 [
+ spkg_2.bin
+ ===
+ <i>header</i>
+ ---
+ manifest
+ ---
+ binary
+]
+
+control fiptool
+
+artifact fip [
+ fip.bin
+ ===
+ FW_CONFIG.dtb
+ ---
+ ...
+ ---
+ SPKG1
+ ---
+ SPKG2
+ ---
+ ...
+]
+
+config.json .up.> SP_vendor_1
+config.json .up.> SP_vendor_2
+config.json --> sp_mk_generator
+sp_mk_generator --> fconf_node
+sp_mk_generator --> sp_gen
+
+sp_gen --> sptool
+sptool --> spkg_1
+sptool --> spkg_2
+
+fconf_node -down-> dtc
+dtc --> FW_CONFIG
+
+sp_gen --> fiptool
+FW_CONFIG --> fiptool
+spkg_1 -down-> fiptool
+spkg_2 -down-> fiptool
+fiptool -down-> fip
+
+@enduml
